ERV ZS:
Tied Flanges – Type ZS, Tie rods with outer limitation in rubber bushings
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Assembling hall, meterial logistics
ZVA Slimline 2 nozzle with hose assembly
IBC unloading
Coupling of Chemopal chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-adapter RS 60 x 2 SS.
Quality in the detail: valve assembly of a ZVA Slimline 2 petrol station nozzle
Functioning principle of MannTek DDC Dry Disconnect Couplings
closed - open
Dantec Production hose
Composite hoses
Universal hose assembly for vehicles fighting dangerous goods incidents:
PTFE 50, length 5 mtr., assembled with MKX 50 SS/Vi SS, VKX 50 SS/Vi SS
ELAFLEX Hamburg
Assembling ERV large DN
Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
Unloading chemical road tanker
Tecnopal hose assembly, DDC Dry Disconnect Coupling, Guillemin adapter
FFBV 80, DAC-V 65, DAC-K 2 1/2" Al
MannTek Full Flow Ballvalves (FFBV), one way
Production MannTek, Sweden
Drum unloading chemical industry
UTS hose assemblies with Easyloc cam locking couplings
UTD hose assemblies in Ex-zone
ERV-GS; ERV-G
Rubber Expansion Joints - use in ship engine room
Elapharm
Hose Assemblies for use in the Pharmaceutical and Biotech Industries
L.P.Gas home delivery:
LPG 38 hose assembly - Aboveground storage Tank
ELAFLEX Hamburg
ERV inner protection sleeve/tube "SR"
Offset UST filling point, LTW hose assemblies with TW couplings
Operator
GasGuard LPG nozzle GG30: optional Magnet in the guard
For contactless activation of dispensers with reed switch technology
Slimline quality dispensing hose for the forecourt
ROTEX Rubber Expansion Joints
Biomass powerplant

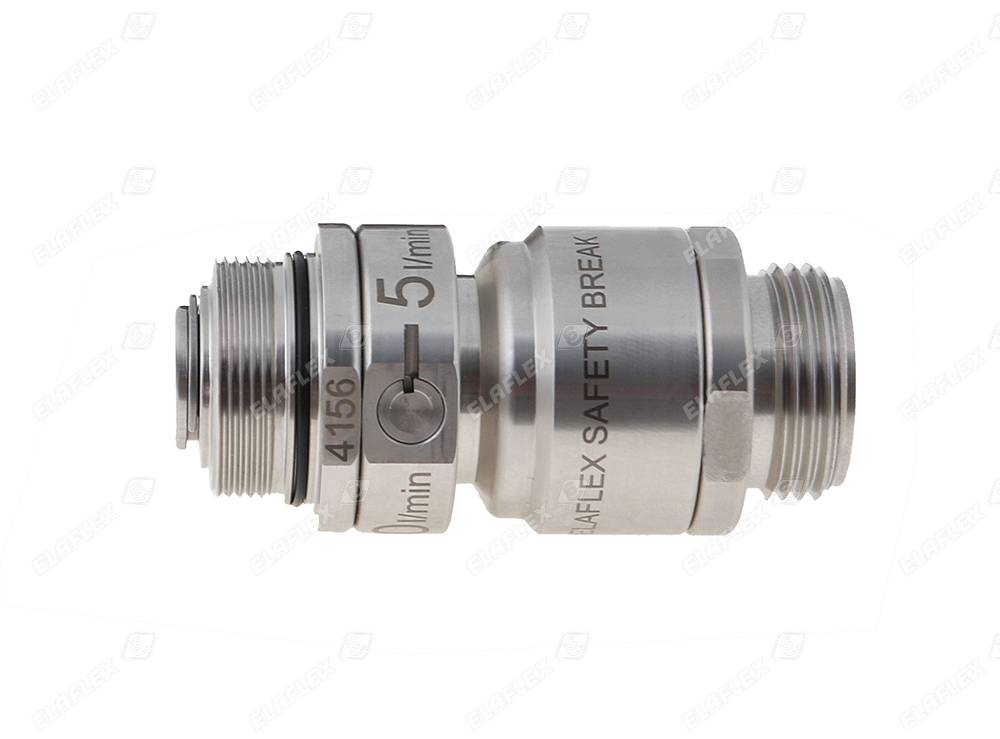

Safety Swivel Break SSB 16 SS of stainless steel f. ZVA HV for AdBlue®
old design
Elaflex Cam and Groove Couplings ('Camlock'): AMKX 50 EASY
EASYLOC stainless steel coupler to EN 14420 - 7, with lever arrest. Picture shows the version as one-piece coupler with integrated hose tail and Spannfix stainless steel clamp
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Machining spouts
Heating oil delivery: ZV 400 nozzle, HD reel hose
Hose Reels group picture
Movable, pneumatic rewind system, active Vapour Recovery (VR) for gasoline fuels
Elapharm EPH 25
ELAPHARM electrically isolating ' I ', blue cover. Corresponds to DIN 26055-3 / EN 16820, Type A. FDA conform. Homogeneous elastomer hose construction with smooth, white Teflon® PTFE liner.
From Terminal To Nozzle
Elaflex refuelling equipment
