BD 63, Hose Beads at airport depot
Elaflon Plus FEP 25
Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.
MK 80 Ms
TW coupler of brass, to EN 144260-6 with 3" female BSP connection
Elaflex Pacific (Australia)
HD 100 C NEON, HD 10 C sensing hose
Type HD-C, aviation hose
Bonding reel grey, high visibility bonding cable with clamp

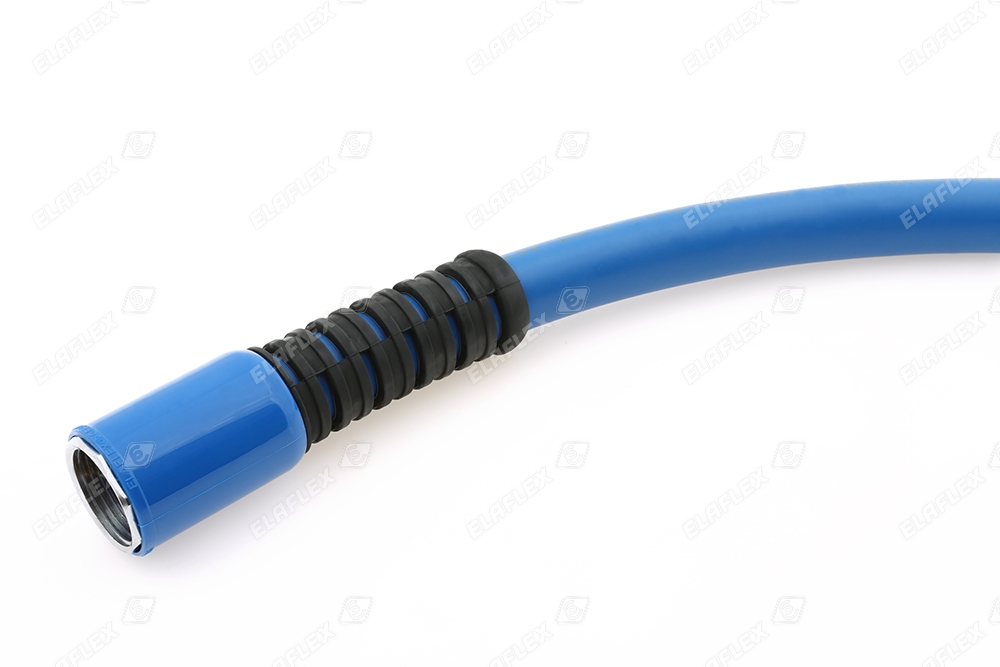

Fluorline EFL 21
Universal pump hose DN 21 for chemicals, petroleum based products, for propane, butane and other L.P. gases, as well as solvents. Ideal for highly sensitive media such as AdBlue® urea solution. Temperature range - 40° to + 100° C. Burst pressure > 64 bar.
RMC 25 SS
Hose coupling with female foodstuff thread and Spannloc clamps
Stainless steel hose tails - new shape
Stainless steel hose tails - optimized shape for enhanced operational safety, suitable for temperatures up to 150° C. Details see Information 5.15.
ERV-G rubber expansion joint
ERV-G AF DN 80, with TW flanges
ERV-GR ... ZS
"Green Band" Rubber Expansion Joints with limiters in chemical pumping system
Scuffguard for ZVG 2 nozzles: type EA 866
with integrated fuel grade identification to European rules and large advertising/printing surface. Available in orange and black
UTL 50 universal hose with MannTek Dry Disconnect Coupling
Hose assemblies
Polypal Clean with RMC, LPG with ACMX, Polypal Plus with SFC-SS, Tecnopal with MK-SS
AMX 50 PA
Ammoniac hose to EN ISO 5771 for water-free, liquid and gaseous ammonia.
Hose tube of road tanker for chemicals
MK-A 80 SS with active safeguard lever ; VB 80 SS dust plug
DDC-M 100, HD-C, airport depot
Dry Disconnect Coupling, Yellow Band hose, at airport depot
Nozzle ZVG 2 ACME, hose assembly LPG 16 orange, nozzle boot NB-ZVG
ERV Rubber Expansion Joints
Picture 4
L.P. Gas rail tanker
loading and unloading with DGC Dry Gas Couplings; Use of adapters with ACME thread
H2 Hydrogen
ERV-H2+ DN 80
ELAFLEX Hamburg
Commissioning / Pick by Voice
Construction of ELAFLEX composite hoses type FWS
Sectioned view of a composite hose, denomination of the components (English)
Unloading petroleum products at the service station (road tanker to UST)
MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.
Road tanker connection - MK 50 Ms, VB 50 Ms, Chain
Anti theft protection with padlock
Double Closing Safety Swivel Break
SSB 25 DC
IBC metal container; UTS hose assembly
L.P. Gas rail tanker
loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange
ELAFLEX Hamburg
Hose stock
