1774 images found




Hose assembly for petrol stations

Hose assembly for petrol stations

Standard hose SL 16

Elaflex hoses

Elaflex hoses

FEP, UTS, PCS, HD, LPG, PTFE, CHS

LNG Refuelling

LNG Refuelling

LNG truck refuelling with 'N-LNG' Nozzle coupled to fuel, LNG 25 fill hose assembly with cover, bonding cable

ZVF 50 JET

ZVF 50 JET

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure 10 bar (140 psi). Temperature range -40° C up to +55° C

UTS hose assembly, rail tanker top loading

UTS hose assembly, rail tanker top loading

ELAFIX 40 Anti-Siphon

ELAFIX 40 Anti-Siphon

Magnet adapter for installation in filler necks from DN 40. This adapter allows the refilling of urea solution with ZVA AdBlue HV, without the risk of misfillings. Meets ISO 22241-4. - Version with anti-theft protection -

Universal hose UTL 38

Universal hose UTL 38

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

and Slimline dispensing hose, black

VHD Neon aircraft refuelling hoses

VHD Neon aircraft refuelling hoses

Aircraft dispenser

DDC-M 100, HD-C, airport depot

DDC-M 100, HD-C, airport depot

Dry Disconnect Coupling, Yellow Band hose, at airport depot

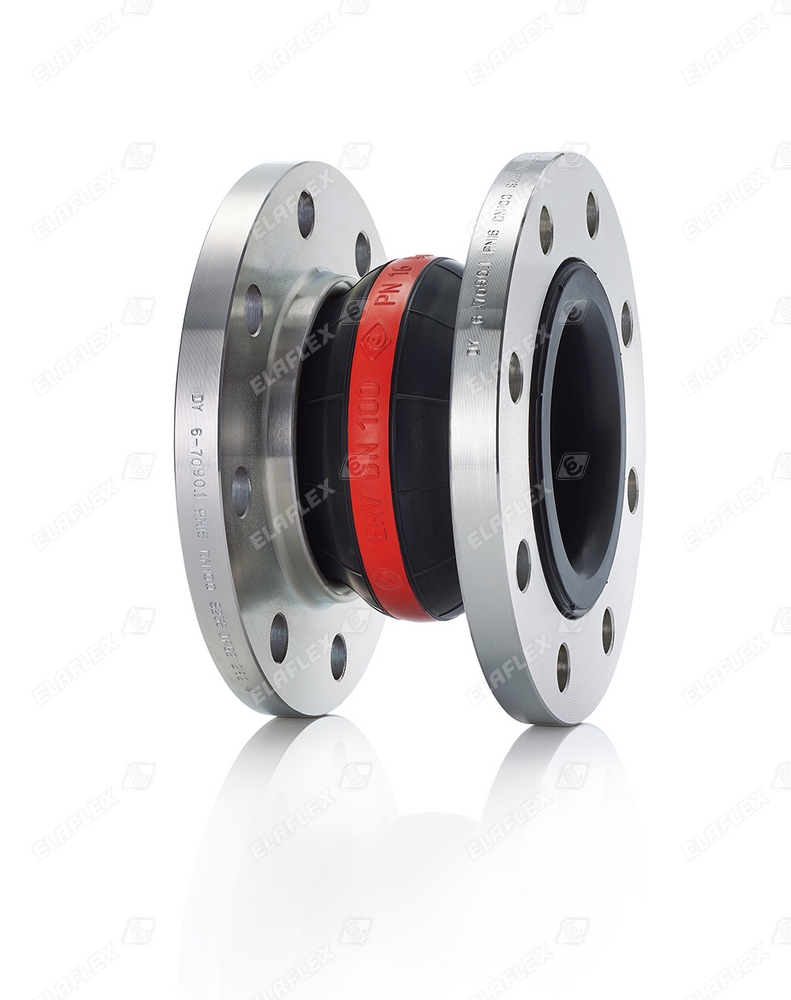

ERV with black, conductive PTFE lining 'TA OHM'

ERV with black, conductive PTFE lining 'TA OHM'

LMD 32 Blue Band solvent hose

LMD 32 Blue Band solvent hose

without helix

ERV SR:

ERV SR:

ERV with inner protection sleeve of stainless steel AISI 316 Ti to prevent abrasion of the rubber liner, i. e. for media containing abrasive components or to avoid cavitation. Please note : The nominal bore is reduced.

ELAFLEX Hamburg

ELAFLEX Hamburg

Aerial view over the ELAFLEX premises

DDC-V 50 SS

DDC-V 50 SS

MannTek Dry Disconnect Coupling, DN 50, stainless steel, with BSP thread connection

Loading Brine (salt solutíon for winter service): CHS hose asssembly, DDC Dry Disconnect Coupling

Loading Brine (salt solutíon for winter service): CHS hose asssembly, DDC Dry Disconnect Coupling

HD-C LT, Low Temperature

HD-C LT, Low Temperature

Antarctica: Low Temperature aircraft refuelling hoses in action

DN 2" Ms

DN 2" Ms

Double nipple brass

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling

Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)

V 19-1" cr

V 19-1" cr

Male ferrule hose coupling EN 14424, reusable. Slimline 19 SF (sulphur free) hose, black.

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid

LeverAssist reduces the hold-open force by 90%, for comfortable refuelling in countries where latching is not allowed

DAC-V 65

DAC-V 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading

Unloading LNG road tanker

Unloading LNG road tanker

DCC Dry Cryogenic Coupling

MannTek DGC DryGasCouplings for L.P. Gas

MannTek DGC DryGasCouplings for L.P. Gas

DGC-M 50 F, DGC-M 80-3", DGC-M 50-2", LPG hose

Heating oil delivery: ZV 500 nozzle, HD reel hose - up to 80 mtr length

Heating oil delivery: ZV 500 nozzle, HD reel hose - up to 80 mtr length

ZVA Slimline 2 LA with LeverAssist hold-open aid

ZVA Slimline 2 LA with LeverAssist hold-open aid

ZVG 2 ACME nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

ZVG 2 ACME nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

AN 2 St

AN 2 St

Welding nipple steel

Elapharm EPH 25

Elapharm EPH 25

ELAPHARM electrically isolating ' I ', blue cover. Corresponds to DIN 26055-3 / EN 16820, Type A. FDA conform. Homogeneous elastomer hose construction with smooth, white Teflon® PTFE liner.

ELAFLEX Hamburg

ELAFLEX Hamburg

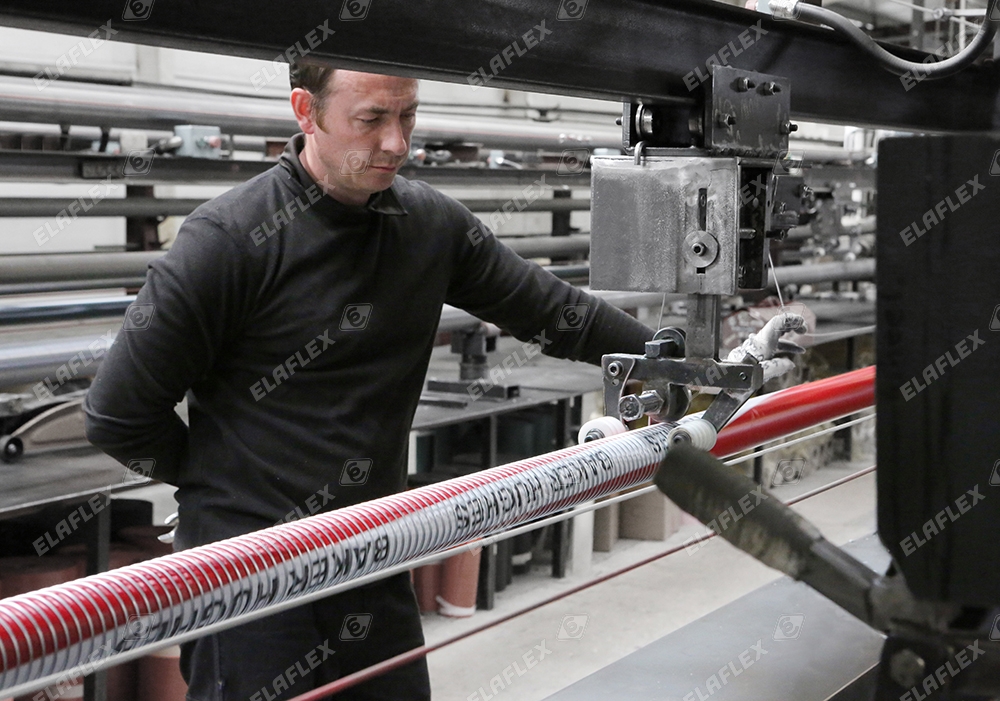

Hose assemblies, marking after testing on the fitting
