Media Library / Images

Fire fighting truck: CHS hose assemblies, ERV-OR Rubber Expansion Joint

DAC-V 65, DAC-M 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - in action

Ferrule threaded hose coupling M 19-1" cr

for petrol station dispensing hoses

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

EL 800 Earthing Strap with vulcanized copper strand

Electrically conductive bonding. Use for road tankers for petroleum based products, solvents, bulk tankers, forklifts, cable cars and cable Electro-Buses.

LNG Refuelling

LNG Nozzle 'N-LNG' coupled to fuel, LNG 25 fill hose assembly, vent hose assenbly with 'VC-LNG'

Slimline 21 blue

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

ERV-GR 250.10 SS TA

Green Band Rubber Expansion Joint with PTFE lining

Underwing refuelling

Biofuel

Tank container filling coupling: MK 80-32 SS with VB 80 SS

MK 80-32° coupling with bent lever. For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

ZVA Slimline 2, filler inlet, Diesel refuelling

Fluorflex FXD universal hose assemblies

with inner corrugation for maximal flexibility. Picture 1

ELAPHARM Type EPH

electrically isolating 'I', with blue cover, to EN 16820, Type A. FDA conform, homogeneous elastomer hose construction with smooth, white PTFE liner. Clamp fittings, lining flared (free of dead spaces).

ElaSil® Silicone hose assemblies DN 13-102

For Pharma, foodstuff and cosmetics industry.
ELS 25 with Camlock Cam Locking Coupling, foodstuff thread and Triclamp.

ERV-GR 80.16

GREEN BAND Rubber Expansion Joint for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to + 90° C. Temperature range (depending on medium) - 20° C up to + 100° C, temporarily up to + 110° C. Electrically non-conductive.

ELAFLEX Hamburg

ERV, assembling vacuum support spiral VSD

ELAFLEX Hamburg

Adapters / couplers for vehicles fighting dangerous goods incidents:

Adapter Hebelarmkupplungen AVK 50 SS/Vi x VK 50 SS/Vi, AMK 50 SS/Vi x VK 50 SS/Vi, AVK 75 SS/Vi x VK 50 SS/Vi

Oasis EC100 electrically isolating couplers for CNG

ROTEX Rubber Expansion Joints

Biomass powerplant

Oasis Engineering Ltd, New Zealand (CNG refuelling products)

Production Picture 7

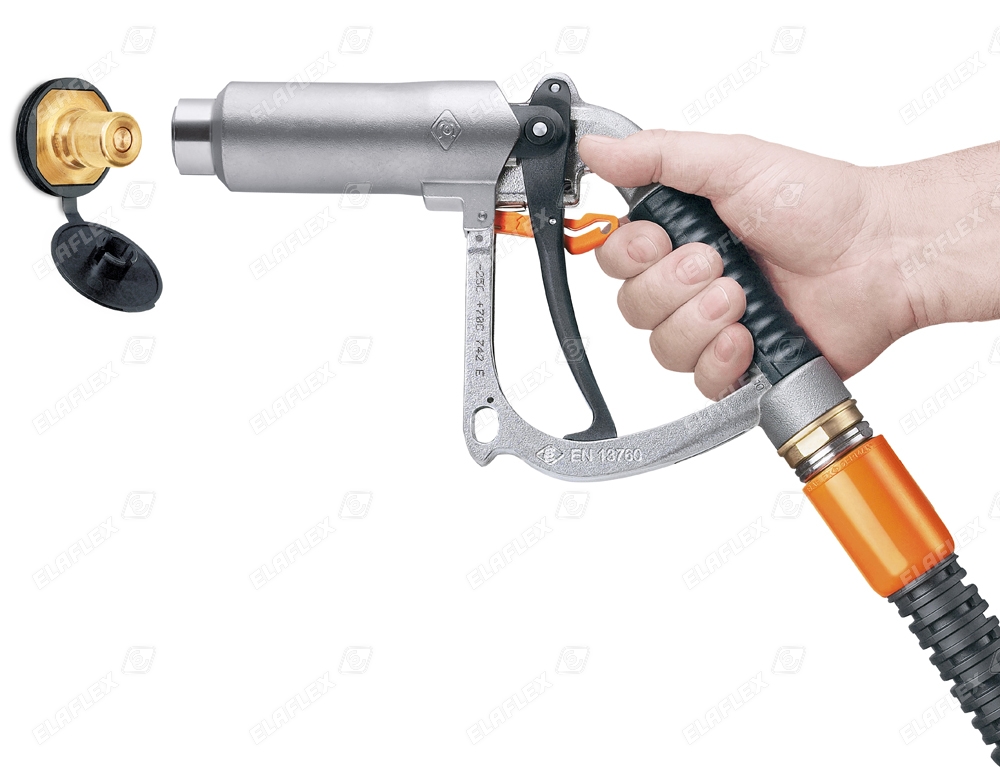

GasGuard LPG nozzle GG30: optional Magnet in the guard

For contactless activation of dispensers with reed switch technology

Compact Line HD 50, Hose Reel Spring Rewind

FEP 5O, MannTek DDC-M 5O SS

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

AVB 50 SS

'Camlock' stainless steel dust plug to EN 14420 - 7 for female couplers AMK

Unloading petroleum products at the service station (road tanker to UST)

LG hose assembly for gravity discharge

AMKC 50 Ms

'Camlock' brass steel coupler to EN 14420 - 7 with hose tail and Spannloc clamps

Composite hose Danoil 7GG, DDC-M Dry Disconnect Coupling, airport depot

MannTek FFBV

Full Flow Ball Valves 2-way
