Media Library / Images

HD-C LT, Low Temperature

LT (Low Temperature) types of our aircraft refuelling hoses are suitable for use in especially cold regions - high flexibility.

RS 3/4 x 1 SS

Reducer Female/Male

ZVF 50 JET

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.

Polypal Oil 75

Universal chemical hose special type with petroleum resistant cover of Chloroprene (CR). Suitable e.g. as gantry hose (road tanker loading).

LNG bunkering / loading of a ship

MannTek DCC Dry Cryogenic Coupling

Nozzle ZVG 2 ACME, hose assembly LPG 16 orange, nozzle boot NB-ZVG

ROTEX 200.10 SS TAS

Rubber Expansion Joint with PTFE lining and PTFE vakuum support ring

Production MannTek, Sweden

GW-G, FGN 4" SS, RS 4" x 3" SS, MK 80 SS

f. fire brigade dangerous goods equipment trucks

Oasis BV708, 1" ball valves, isolation valves, CNG trailer loading

Solvent filling with integrated vapour recovery in the nozzle

ZVA 25 GR, UTS hose assemblies

Construction site / on site refuelling:

ZVA 500 manual bulk nozzle

VC 65-21/2" SS / SS

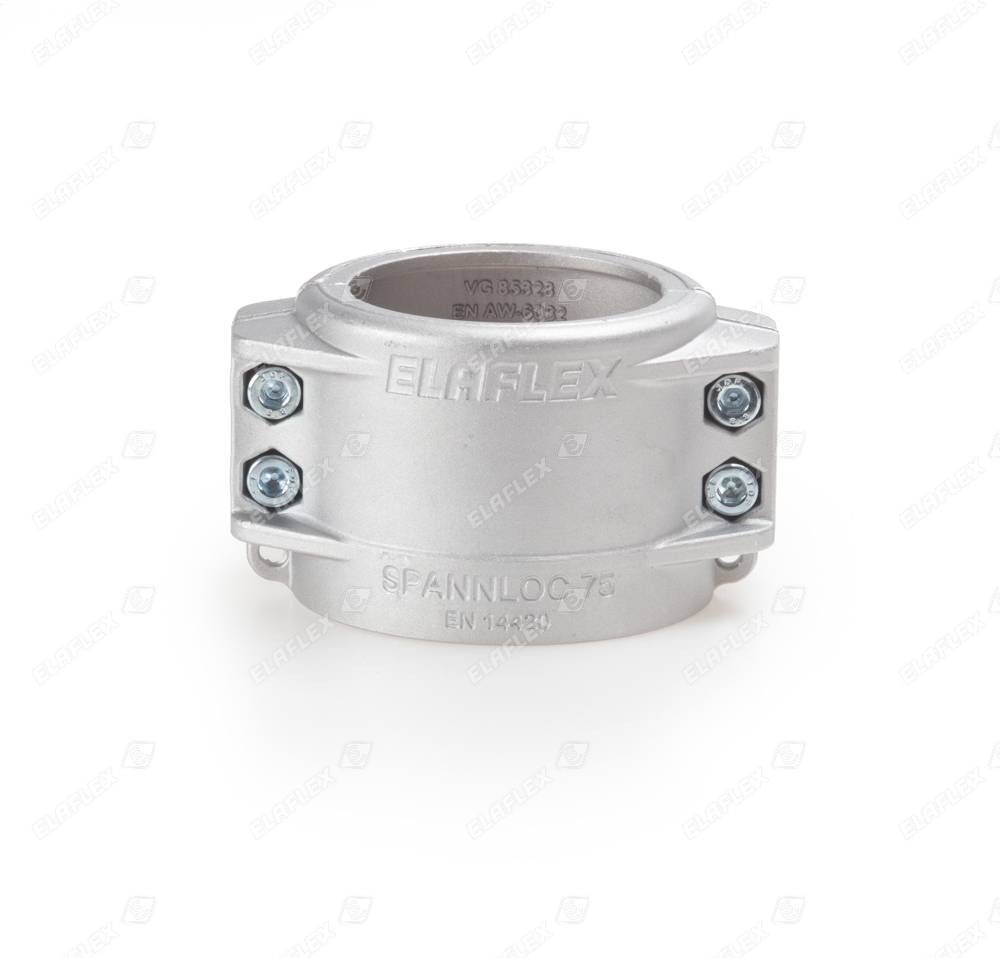

Spannloc threaded hose coupling with BSP male thread / Spannloc of stainless steel

ZVG 2 ACME nozzle for L.P. Gas / Autogas

LPG nozzle for vehicle refuelling with liquefied petroleum gas (propane, butane and mixtures) up to 50 l / min. Working pressure 25 bar. Test pressure 40 bar. Burst pressure > 100 bar. Temperature range - 25° up to + 70° C, 'LT'-Type down to - 40° C.

DDC-K 2 1/2" PE

Dust cap for DDC-V Dry Disconnect Couplings;
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

Manufacturing of turned parts

Type PCS, Polypal Clean

one side with RMC foodstuff fitting / Spannloc clamps stainless steel, other side open (note the inner conductive stripe)

ELAFLEX Hamburg

Visual quality checks

LPG terminal: loading with DGC Dry Gas Couplings

Production MannTek, Sweden

Heating oil delivery: ZV 500 nozzle, HD hose

Road tanker hose reel, made by Elaflex Italia

with LPG hose assembly

ERV-GS

"Yellow Steel" Rubber Expansion Joints / ship engine room; Netherlands

MB 100 Al

Dust cap for VK 100, aluminium

Universal hose assembly for vehicles fighting dangerous goods incidents:

Aspiration hose PTFE 32 length 2,1 mtr., one side VKC 32.50 SS/Vi SS, other side open

Ship bunkering with LNG

towards the end of the bunkering process

90° Bend Al

90° bend of aluminium with pipe thread (EN ISO 228 with flat sealing surface). Available in sizes G 2" and 3". On request with TW couplings.

L.P. Gas rail tanker

loading and unloading with DGC Dry Gas Couplings, LPG hose assemblies. Vehicle side: DGC-V male couplings with flange

ELAFLEX Hamburg

Stock special flanges, pick by voice, scanning

Adapter: MK 80-32° Ms x MK 80-32° Ms

Special type with bent levers. The lever is bent to enable lever arrest (safe position when coupled)
