ELAFLEX refuelling equipment:

Quality is in the detail.

Ultra Fast Fill Quick Coupler 350 bar

for Hydrogen

GasGuard LPG nozzle GG1EH

used for industrial refueling / attended refueling. With hybrid nose piece − low lever force. Release volume on valve closure: 1,7 cm³.

Heating oil delivery: HD 38 reel hose

ZVF 50 JET overwing refuelling

with HD-C hose assembly

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Mobile tank for solvents

hose assembly UTS 50 with MKX 50 SS and VB 50 SS

Elaflex Cam and Groove Couplings ('Camlock'): AMKX 50 EASY

EASYLOC stainless steel coupler to EN 14420 - 7, with lever arrest. Picture shows the version as one-piece coupler with integrated hose tail and Spannfix stainless steel clamp

ERV with FSH:

Flame protection cover (closed)

KSS-SD of stainless steel

for saturated steam hoses. These hose assemblies are subject to high wear. The main stress area for hose assemblies is also at the joint end is protected.

FGN 2 St

Flange with male thread, steel zinc plated/chromated

Hose assemblies

with flanged coupling, Dry Disconnect Coupling, TW coupling

Yellow Band hoses from Elaflex

Setting the standard for refuelling hoses

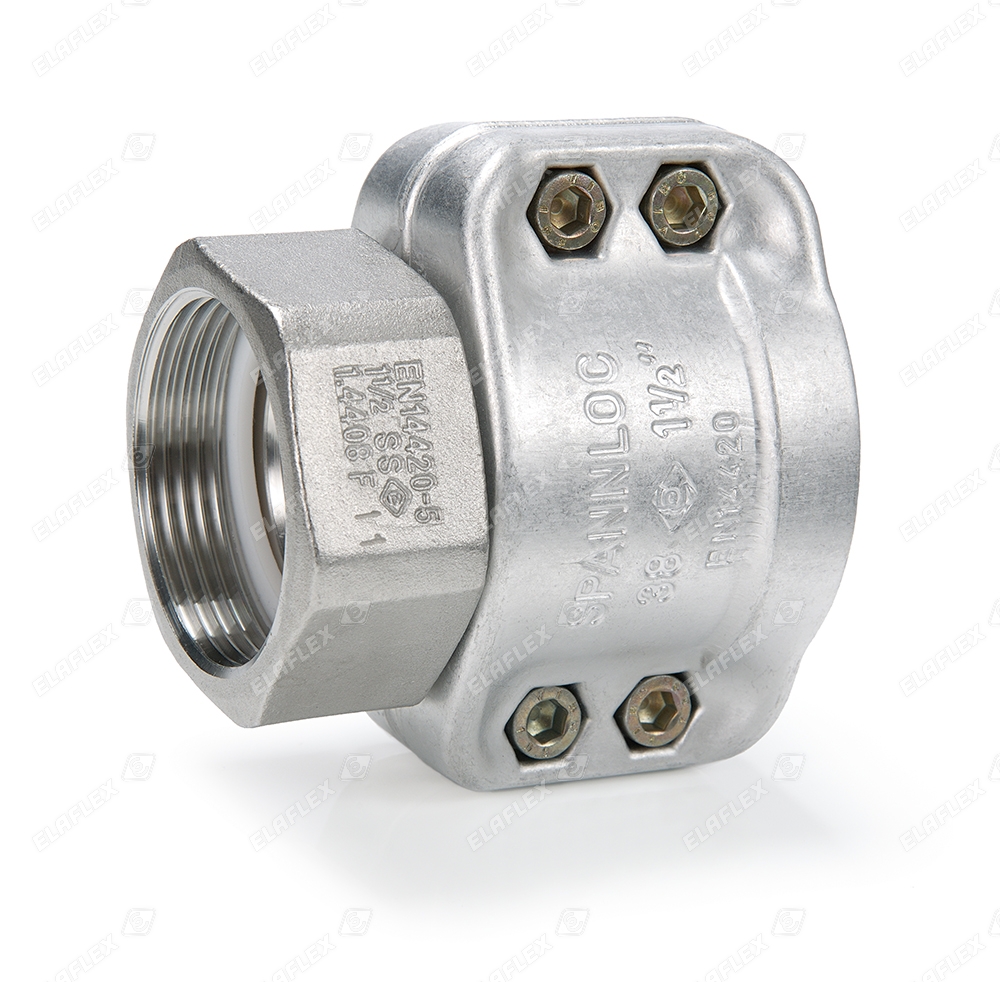

SPANNLOC bolted safety clamps of aluminium

SC 75 Al

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.

Locomotive refuelling

DDC-V Dry Disconnect Coupling (filler inlet of the locomotive), DDC-K cap

ERV-R Red Band rubber expansion joint, ship engine room

VB 50 P, VB 80 P

TW dust plugs of Polyamide

MB 50 SS

Dust cap for VK 50, stainless steel

Heating oil delivery: ZV 500 nozzle, HD reel hose - up to 80 mtr length

Rubber Expansion Joint ERV-R 80.16

RED BAND expansion joints for water, drinking water (approvalDVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature (depending on medium) - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

ZVF 50 JET overwing refuelling

with HD-C hose assembly

MK 80-3" AG Ms

TW coupler of brass, to EN 144260-6. Special type with 3" male BSP connection

BK 3 SS

Cap with 3" female BSP thread, stainless steel

Hose assembly TW 63 with VX 63-11/2" and DDC-M 65 Al

TW hose with Dry Disconnect Coupling

KR 50 - 21/2", HD reel hose

Filling of Heating Oil Tanks: New Adapter for difficult-to-reach house connectors

Terminal / gantry: 'Polypal Oil' hose assemblies for bottom loading of road tankers

Lining UPE - resistant to all petrochemical media, also with high content of aromatics or other aggressive additives; cover CR - oil resistant

Flange seal FD 220-162 of ELAPAC

LNG Refuelling

N-LNG Nozzle, Soft-Stop-Position

HD 10 C sensing hose

Use as sensing hose for aircraft dispensers (hydrant dispensers)
